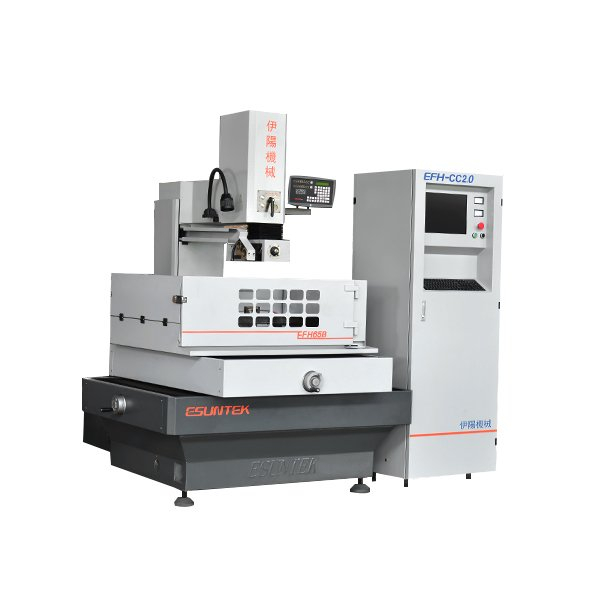

Wire EDM Machine EFH65B

wire edm machine manufacturer- Shanghai Esuntek Machinery Co., Ltd.multi wire cut,acuraccy 0.01mm,surface finish Ra1.0um

Quantity:
  • EFH65B
  • ESUNTEK
  • 8456301090
  • 3000kg

Machine Tool Details

 wire edm machine EFH65B ESUNTEK SHANGHAI CHINA



01 PRODUCT SERIES



Realize high precision with finite Element Analysis,high rigidity casting,optismal body design,minimum deformation


Solid casting base adopted box structure is cornerstone of high precision.



  ESUNTEK WIRE EDM CUT MACHINE SIDE&BACK VIEW


MORE DETAILS&STAFF PRESENCE






 wire edm machine price EFH65B ESUNTEK SHANGHAI CHINA

Parameter Information

  • Main Accuracy

     Best Surface finish: 1.0μm

     Best Machining Accuracy: 0.01mm

     Max. cutting speed: 200mm² /min

  • Basic machine, Cabinet and Dielectric unit in one plate

Size of Working Table (L×W)Machining groove size

Max Size (L×W)of Workpiece

Maximum workpiece size(L×W)

X*Y*Z Axle Travel

UV axis stroke

Max Cutting Thickness

Max Cutting Taper

Use of Electrode Wire

Cutting efficiency

Max Weight of Workpiece

Weight of Machine Too

Power

Power Tool

Z Shaft Lifting Way

880×681 mm

1060×810mm

980×720×300mm

600×500×250 mm

±20mm

300 mm

±3°/80mm

Φ0.13 - Φ0.20 mm

0--200 mm² /min (As the material may be)

900kg

3000kg

3.5KVA

AC 3~380V/50Hz

Electric
