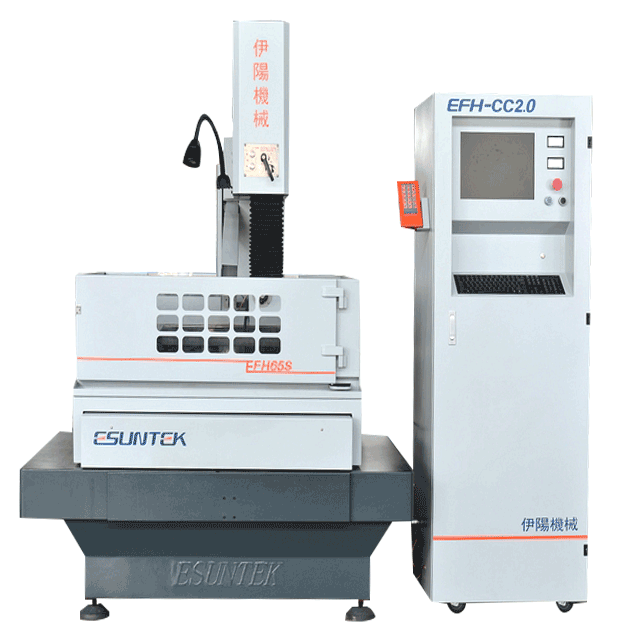

Wire EDM Machine EFH65S

Multi moly wire edm machine,made by ESUNTEK manufacturer from SHANGHAI CHINA,accuracy 0.01mm,surface finish Ra 1.0 um
Availability:
Quantity:
sharethis sharing button
  • EFH65S

  • ESUNTEK

  • 8456301091

  • 2500kg

Machine Tool Details





01 PRODUCT SERIES



Realize high precision with finite Element Analysis,high rigidity casting,optismal body design,minimum deformation


Solid casting base adopted box structure is cornerstone of high precision.



  ESUNTEK WIRE EDM CUT MACHINE SIDE&BACK VIEW


MORE DETAILS&STAFF PRESENCE






photobank



photobank (1)





Parameter Information


  • Main Accuracy

     Surface finish: Ra1.0μm

     Machining Accuracy: 0.01mm

     Max. cutting speed: 200mm² /min


  • Basic machine, Cabinet and Dielectric unit in one plate

Worktable size (Length×Width)980×720 mm
The processing tank size880×681mm
Max Size(Length×Width) of Workpiece900×250mm
X * Y * Z Axle Travel 600×500×250mm
U*V Axle Travel ±20mm
Max Cutting Thickness300 mm
Max Cutting Taper± 3°/80mm
Use of Electrode Wire Φ0.13-Φ0.20 mm
Cutting efficiency0--200 mm²/min(As the material may be)
Max Weight of Work piece5000kg
Weight of Machine Too2100kg
Power3.5KVA
Power ToolAC 3~380V/50Hz
Z Shaft Lifting Way Electric
