| Quantity: | |
|---|---|
EFH54S
ESUNTEK
8456301090
2600kg
Machine Tool Details

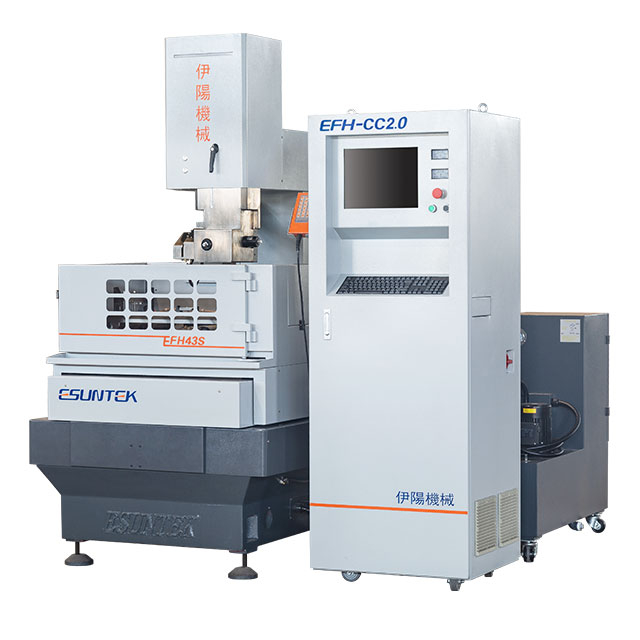

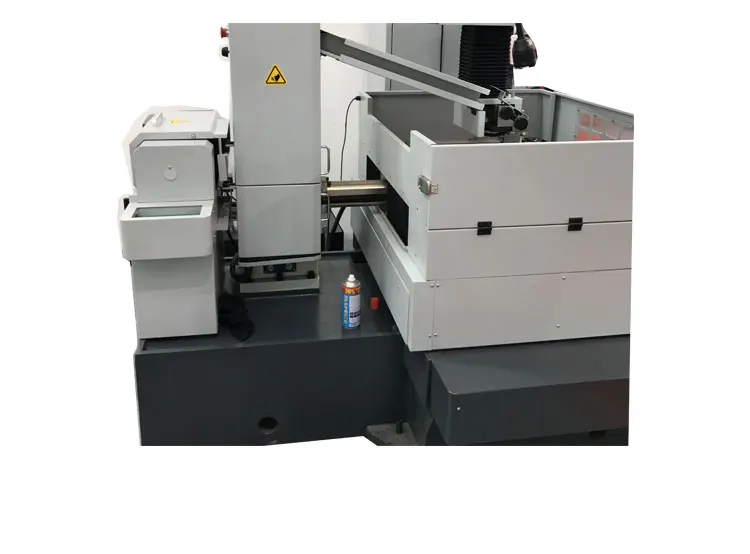

Wire EDM Machine ESUNTEK EFH54S SHANGHAI CHINA

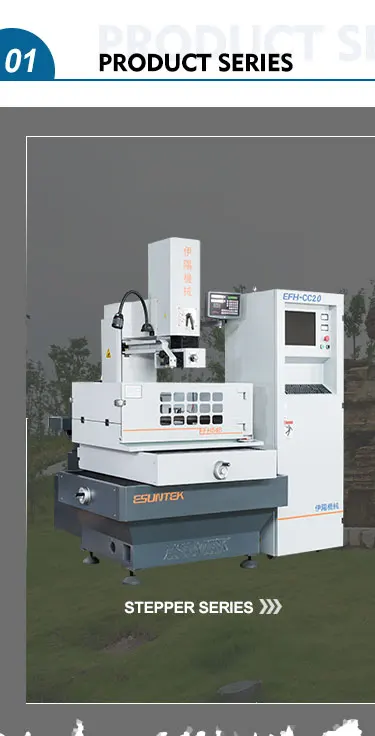

01 PRODUCT SERIES
Realize high precision with finite Element Analysis,high rigidity casting,optismal body design,minimum deformation

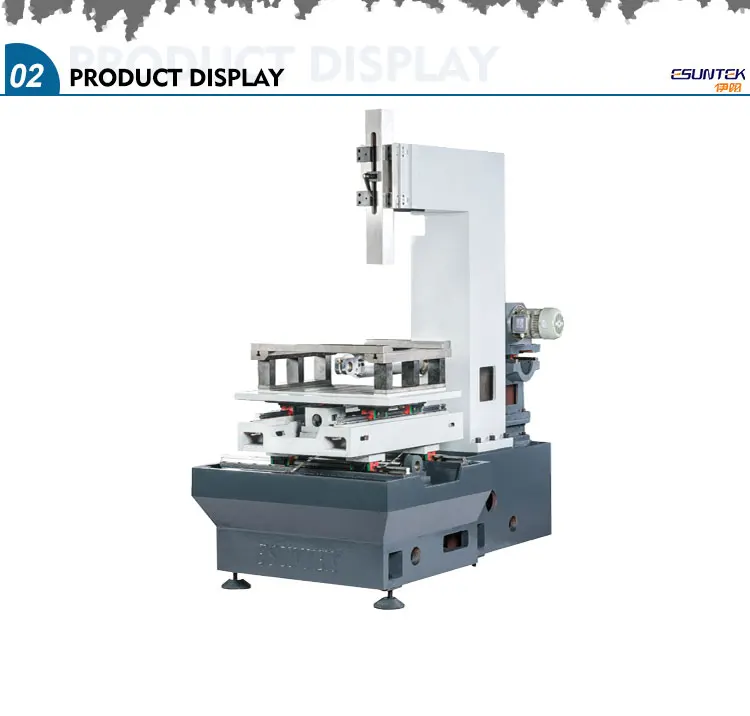

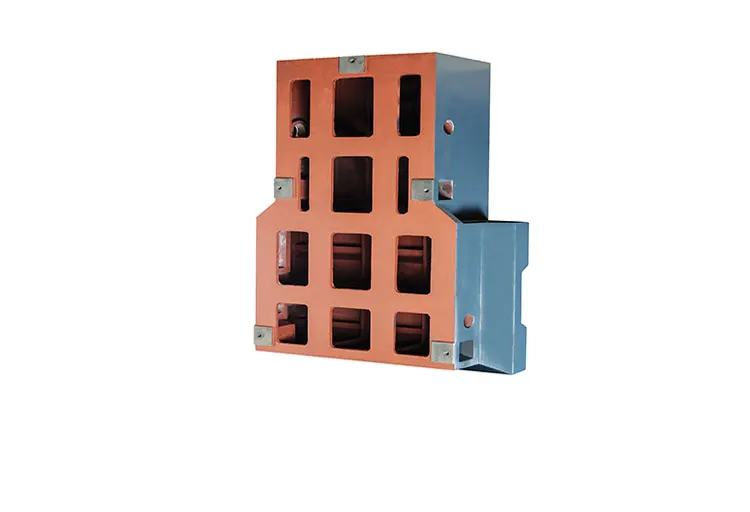

Solid casting base adopted box structure is cornerstone of high precision.

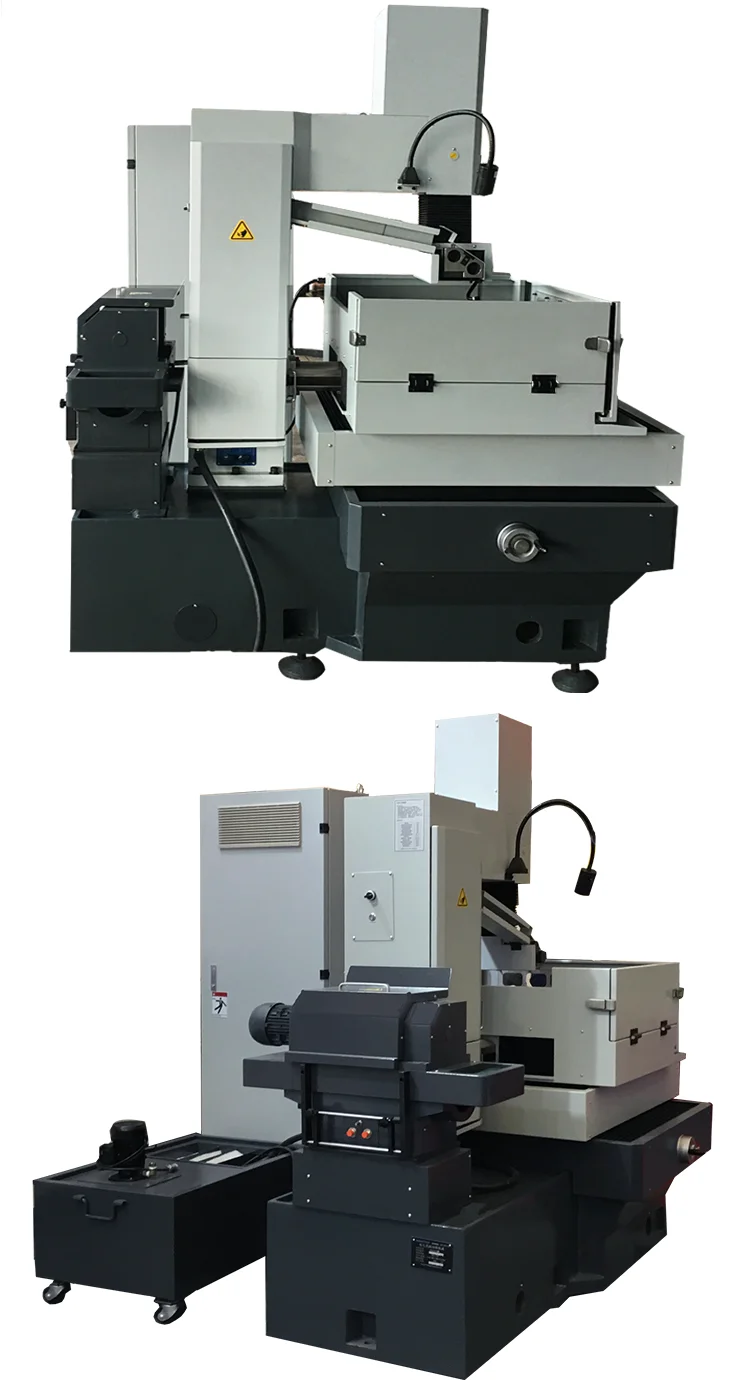

ESUNTEK WIRE EDM CUT MACHINE SIDE&BACK VIEW

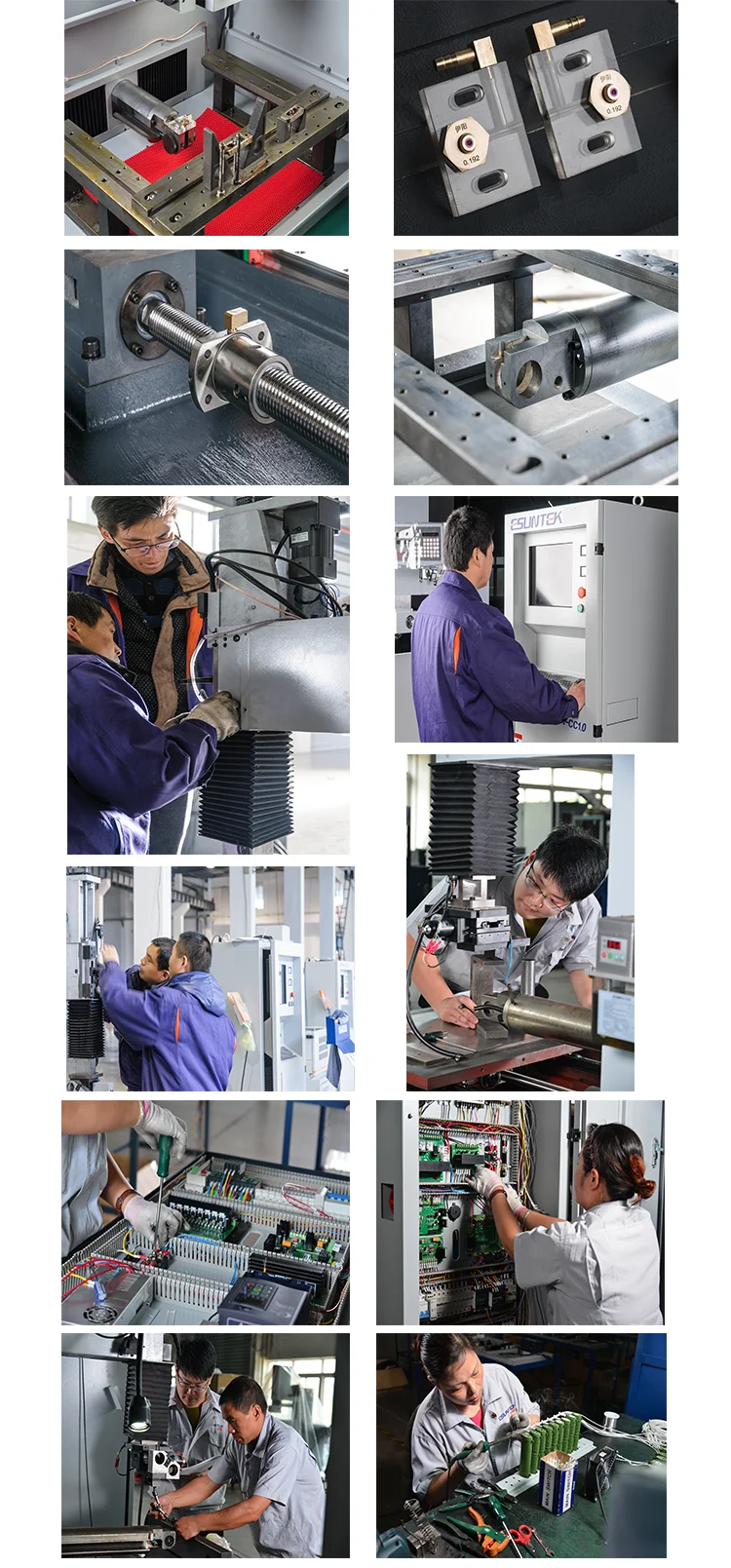

MORE DETAILS&STAFF PRESENCE
wire cut edm machine EFH54B ESUNTEK SHANGHAI CHINA
Parameter Information
Best Surface finish: 1.0μm Machining Accuracy: 0.012mm Max. cutting speed: 180 mm⊃2;/min
| |
Machining groove sizeMaximum workpiece size Size of Working Table Max Size （Length×Width）of Workpiece Maximum workpiece size （L×W） UV axis stroke X*Y*Z Axle Travel Max Cutting Thickness Max Cutting Taper Use of Electrode Wire Cutting efficiency Max Weight of Workpiece Weight of Machine Tool Power Power Tool Z Shaft Lifting Way | 960×680mm 880×610×300mm 780×555 mm 880×610mm ±20mm 500×400×250 mm 300 mm ±3°/80mm Φ0.13 - Φ0.20 mm 0--180 mm⊃2; /min (As the material may be) 0--180 mm⊃2; /min 700kg 2600kg 3.5KVA AC 3~380V/50Hz Electric |
